Arc gouging is a welding technique designed to efficiently remove metal by melting it with an electric arc and blowing it away using compressed air. This process is widely used in various industries due to its versatility and effectiveness.

Common applications of arc gouging include removing old or defective welds, back-gouging joints to ensure complete weld penetration, and preparing metal surfaces for new welding work. It is particularly valued for its ability to remove material quickly and precisely without causing excessive damage to the base metal.

This article aims to provide a comprehensive guide on how to arc gouge, covering the process, tools, and techniques required for effective and safe operation. Whether you’re a beginner or an experienced welder, understanding the fundamentals of arc gouging, along with proper preparation and safety measures, is essential for achieving reliable and high-quality results in your projects.

Understanding Arc Gouging and Its Tools

What Is Arc Gouging?

Arc gouging is a process that utilizes an electric arc to generate intense heat, melting the metal on the surface. Simultaneously, compressed air blows the molten material away, creating a clean and precise groove or cavity. This technique is highly efficient and versatile, making it an excellent choice for applications where speed and accuracy are critical.

Arc gouging provides significant advantages, including faster metal removal, reduced physical effort, and minimal wear on tools compared to mechanical grinding or cutting methods. Its effectiveness in removing material without compromising the base metal makes it a preferred technique in various industries.

Tools and Equipment Needed

To successfully perform arc gouging, you will need the following tools and equipment:

• An air carbon-arc gouging torch for controlling the arc and compressed air.
• Carbon electrodes, which come in various sizes and types based on the gouging application.
• An air compressor to supply the required airflow for blowing away molten material.
• A reliable power source to sustain the electric arc during the process.

Additionally, optional tools such as slag removal tools, protective blankets, or shields can be helpful for specific tasks. These tools enhance the safety and efficiency of the process, ensuring reliable results and a cleaner work environment.

Preparing for Arc Gouging

Ensuring Safety Precautions

Before starting the arc gouging process, it is essential to prioritize safety to prevent accidents and injuries. Wearing appropriate personal protective equipment (PPE) is crucial, including a helmet with a welding shield to protect your face and eyes, industrial gloves to shield your hands, flame-resistant clothing to minimize the risk of burns, and ear protection to guard against noise exposure.

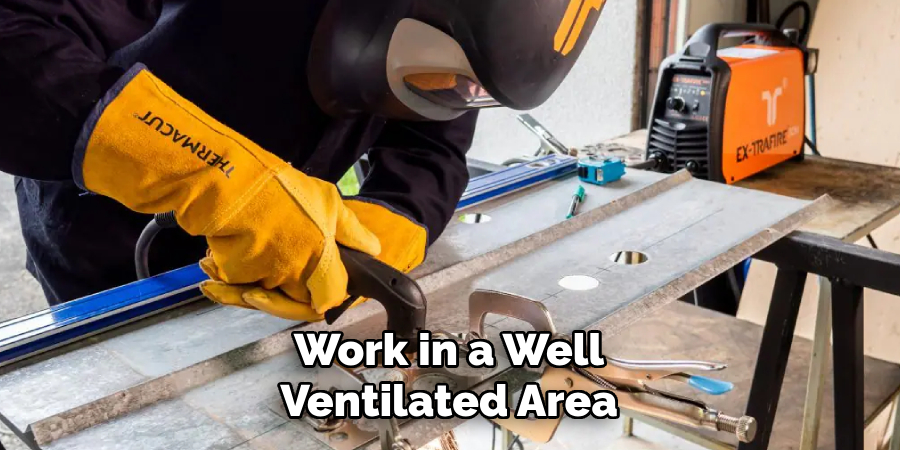

Additionally, work in a well-ventilated area to avoid inhaling harmful fumes and ensure no flammable materials are nearby to reduce the risk of fire. Proper preparation creates a safer environment for efficient and effective arc gouging.

Setting Up the Equipment

Properly setting up your equipment is key to a successful arc gouging operation. Begin by securely connecting the gouging torch to both the power source and the air compressor, ensuring that all cables and hoses are tightly secured and free of damage.

Next, check the compressor’s air pressure settings to ensure they align with the electrode size and the material being gouged; insufficient air pressure may result in poor performance. Similarly, adjust the current settings on the power source to the appropriate level based on the gouging application. A thorough setup minimizes disruptions and ensures optimal results.

How to Arc Gouge: Step-by-Step Guide

Selecting the Correct Electrode

Selecting the appropriate carbon electrode is crucial for achieving efficient and high-quality arc gouging results. Electrodes come in various sizes and types, and their selection depends on the material being gouged, the required gouging depth, and the specific application.

Thinner electrodes (e.g., 1/8 to 3/16 inches) are recommended for smaller gouging applications, as they allow for more precise and controlled operations. For larger industrial applications or deeper grooves, thicker electrodes (e.g., 5/16 to 3/8 inches) are better suited because they handle higher currents and produce more molten metal.

The composition of the electrode—such as coated versus uncoated electrodes—can also affect the operation, with certain coatings designed to minimize oxidation or improve current transfer.

Matching the electrode size and type with the power source and air pressure ensures consistent gouging performance while minimizing wear on the torch. Evaluating these factors is key to improving efficiency and achieving a smooth, clean gouge.

Positioning and Starting the Arc

Proper positioning of the arc gouging torch is essential to maintaining control and achieving a clean cut. Begin by holding the torch at a 35–45 degree angle relative to the metal surface.

This angle allows the arc and air to effectively melt and blow away material while preventing excessive slag or rough cuts. Position the electrode slightly above the surface to ensure contact when the arc starts.

To initiate the gouging process, strike the arc by lightly touching the tip of the electrode to the metal surface and then pulling it back slightly. Once the arc is established, compressed air will blow the molten material away from the work area.

Maintaining steady hand control is crucial during this step to prevent accidental digging into the base metal. If the arc becomes unstable, check the current and air pressure settings, as insufficient values can disrupt the process and lead to inconsistent results.

Gouging the Metal

Once the arc is established, start moving the torch steadily along the metal surface to create a clean and uniform gouge. Use smooth, controlled motions to guide the electrode in the desired direction of the cut. Avoid jerky or uneven movements, as this can result in jagged grooves and surface damage.

Maintain a consistent arc length between the electrode and the surface—too short an arc can cause the electrode to stick, while too long can disrupt the arc stability. Simultaneously, ensure the air pressure is appropriately set to remove molten material effectively without leaving behind excessive slag.

For best results, adjust your gouging speed based on the desired depth of the groove. Slower speeds will achieve deeper cuts but may generate more heat, while faster movements are effective for shallow or surface-level gouging. These techniques ensure precision and consistency, leading to clean, professional results.

Techniques for Specific Applications

Back-Gouging Weld Joints

Arc gouging is a highly effective method for preparing weld joints to ensure proper penetration and strong weld integrity. Back-gouging is commonly performed after the initial weld pass to remove excess material, revealing a clean surface for subsequent weld layers.

This process ensures that the weld fully penetrates the joint and eliminates any potential defects, such as trapped slag or porosity, that could compromise the weld’s strength.

To create a uniform groove during back-gouging, position the torch at a consistent angle (typically 35–45 degrees) and maintain steady hand control while moving the torch along the weld seam.

Adjust the air pressure and current to match the material thickness and ensure the effective removal of excess weld metal. Smooth, even movements help achieve a uniform groove profile, which is critical for enhancing weldability and ensuring the final joint has consistent strength and quality.

Removing Defective Welds

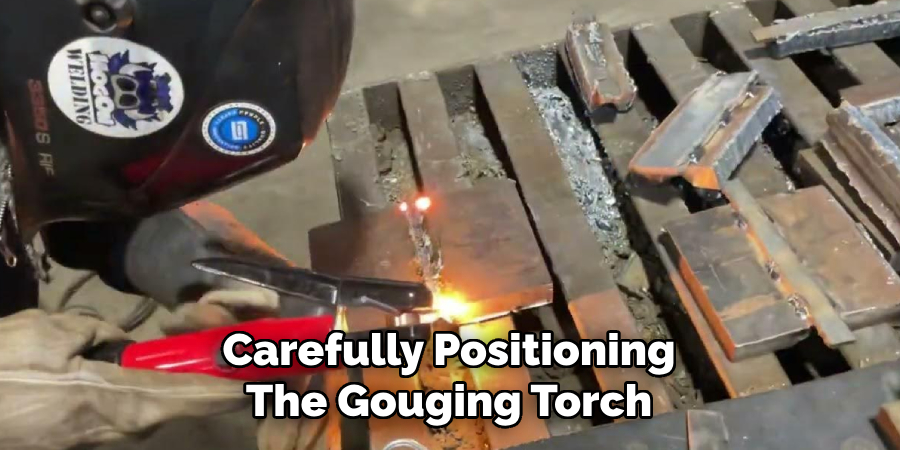

Arc gouging is also commonly used to remove defective welds, allowing for repair work without compromising the integrity of the base material. Begin by carefully positioning the gouging torch over the weld to be removed, maintaining a controlled arc and steady movement to ensure precision. Adjust the air pressure and current to match the type and thickness of the weld being removed.

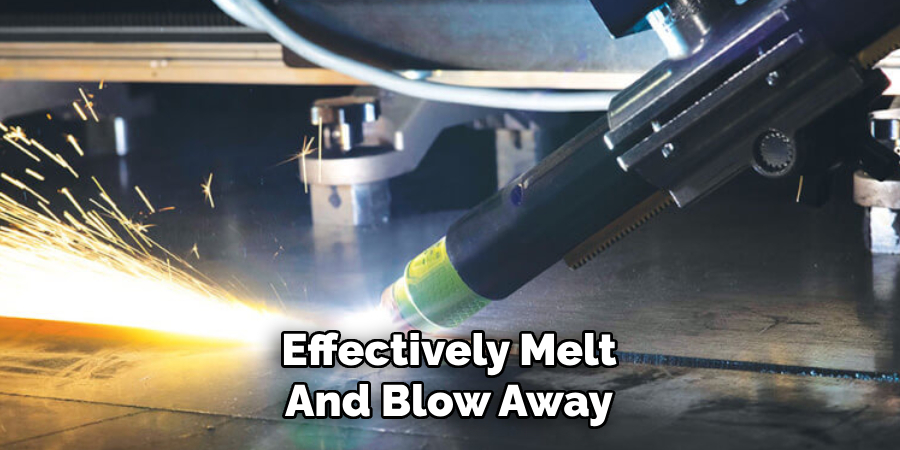

Avoid excessive force or erratic movements, as this can damage the underlying base metal. Instead, use smooth, controlled strokes to effectively melt and blow away the unwanted weld.

Once the defective weld is removed, thoroughly inspect the gouged surface to ensure that it is free of defects, such as cracks, slag inclusions, or uneven areas, which may interfere with the re-welding process. Proper surface preparation is essential for achieving high-quality repairs and ensuring long-lasting, reliable welds.

Troubleshooting Common Issues

Inconsistent Gouging or Arc Stability

Achieving consistent gouging and stable arcs requires careful attention to the setup and operation of the equipment. Start by verifying that the current settings are appropriate for the selected electrode size. Insufficient current can lead to an unstable arc, while excessive current may cause spattering and damage to the electrode.

Additionally, ensure that the air pressure is properly adjusted to blow away molten material effectively without overloading the process. Maintaining a steady hand and keeping the torch angle consistent at 35–45 degrees is equally important for smooth and stable gouging. Practice these techniques to reduce interruptions and improve performance.

Excessive Slag or Surface Damage

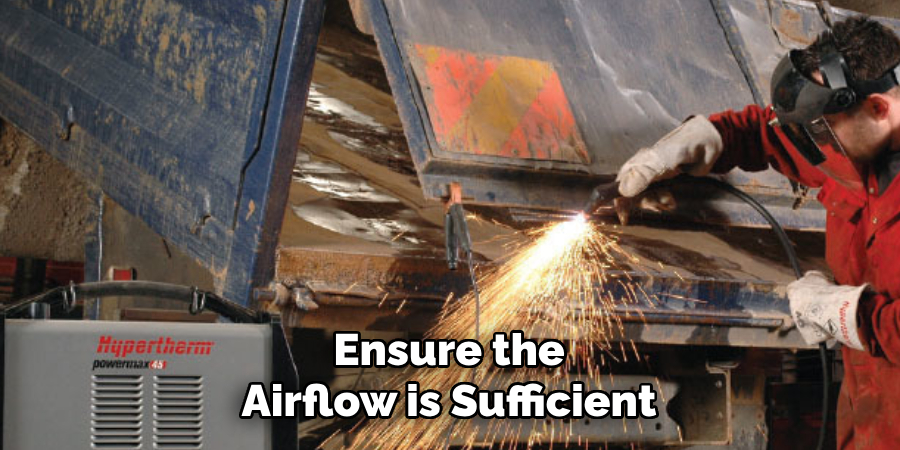

Excessive slag buildup can occur if air pressure is too low or if the wrong electrode type or size is used. To minimize slag, ensure the airflow is sufficient to remove molten material and consider using coated electrodes specifically designed to reduce oxidation.

Surface damage, however, can be prevented by controlling heat input through proper current settings and maintaining a moderate gouging speed. Slow movements can cause overheating, while fast, jerky strokes may result in a rough, uneven surface. Strive for smooth, controlled movements to achieve clean, precise gouges with minimal slag or surface imperfections.

Maintaining Arc Gouging Equipment

Cleaning and Storing Equipment

Proper cleaning and storage of arc gouging equipment are crucial for prolonging its lifespan and ensuring consistent performance. After each use a clean cloth, clean the torch thoroughly to remove any residual slag, debris, or molten material. Inspect the cables for damage, such as fraying or breaks, and replace them if necessary.

Additionally, ensure the air passages are clear and free of obstructions to maintain optimal airflow. Store the equipment in a dry, safe area away from moisture and contaminants to prevent rust or wear. Use protective cases or covers if available to shield components from damage.

Regular Inspection and Repairs

Regular inspections are essential to identify and address signs of wear in air hoses, power cables, or torch components before they lead to operational issues. Look for cracks, leaks, or corrosion that may compromise performance or safety.

Replace worn parts promptly to maintain the equipment’s reliability and efficiency. By incorporating routine maintenance and timely repairs, you can ensure smoother operation and reduce the risk of costly downtime.

Conclusion

Mastering how to arc gouge requires a thorough understanding of the process, proper preparation, and strict adherence to safety protocols. Arc gouging proves invaluable for applications such as back-gouging weld joints and removing defective welds, enabling high-quality results in metalworking and repair tasks.

The key to success is proper equipment settings, consistent technique, and careful surface inspection to ensure precision and durability. Regular practice sharpens skills, while routine maintenance keeps equipment reliable and efficient. By focusing on preparation, safety, and consistent technique, operators can achieve clean, professional results and extend the lifespan of their tools, ensuring long-term success.
