Wire mesh attached to a metal frame offers many applications, from creating secure enclosures and fencing to constructing sturdy shelves and engaging in various DIY projects. The combination of wire mesh and a metal frame provides increased strength, durability, and customizability, making it a popular choice for both residential and commercial purposes.

The purpose of this article is to provide a comprehensive guide on securely attaching wire mesh to a metal frame. Whether you’re a DIY enthusiast or a professional builder, we will explore different methods and tools to ensure a successful installation. From selecting the right materials to step-by-step instructions, we will cover everything you need to know about how to attach wire mesh to metal frame. By the end, you’ll have the knowledge and confidence to create secure and long-lasting wire mesh installations for your projects. So, let’s dive in and discover the secrets to mastering the art of attaching wire mesh to a metal frame.

Types of Wire Mesh and Metal Frames

When it comes to attaching wire mesh to a metal frame, it’s important to consider the different types of wire mesh and metal frames available. Let’s explore each of these in detail:

Wire Mesh Types

There are several types of wire mesh commonly used for various applications. These include:

• Welded Wire Mesh: Constructed by welding individual wires together at their intersections, welded wire mesh offers excellent strength, stability, and rigidity. It is often used for heavy-duty applications such as fencing and security enclosures.
• Woven Wire Mesh: Woven wire mesh is created by interweaving wires in an over-and-under pattern. This type of mesh offers flexibility and is commonly used for insect screens, decorative purposes, and lightweight fencing.
• Expanded Metal: Made by cutting and stretching a sheet of metal, expanded metal mesh provides a unique pattern with high strength and rigidity. It is frequently utilized for walkways, industrial platforms, and machine guards.
• Hardware Cloth: Also known as wire cloth or wire netting, hardware cloth consists of woven wire mesh with a relatively small mesh size. It is commonly used for animal cages, pest control, and small-scale fencing.

When selecting wire mesh, consider factors such as strength, durability, mesh size, and the specific application it will be used for.

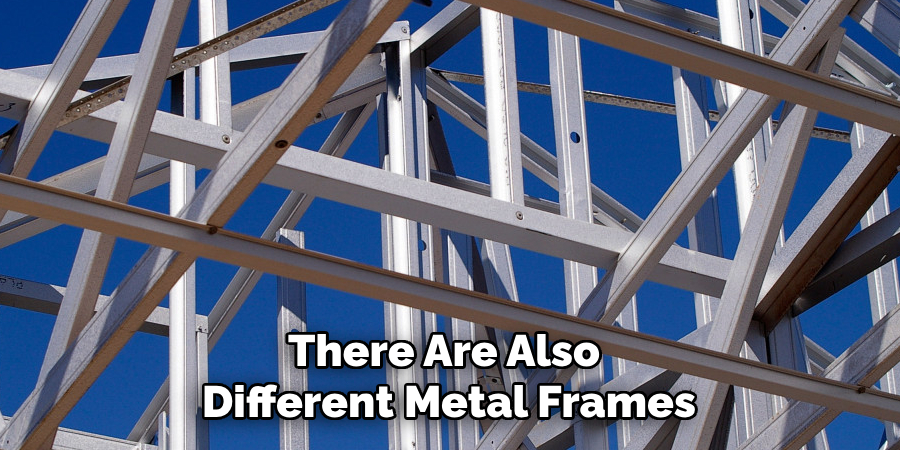

Metal Frame Types

Just as there are various types of wire mesh, there are also different metal frames suitable for attaching wire mesh. Some common options include:

• Steel Frames: Steel frames provide exceptional strength and durability, making them ideal for heavy-duty applications. They are commonly used in industrial settings, construction projects, and fencing installations.
• Aluminum Frames: Aluminum frames offer a lightweight and corrosion-resistant alternative to steel. They are popular for applications where weight is a concern, such as lightweight enclosures or decorative panels.
• Wrought Iron Frames: Wrought iron frames are known for their elegance and decorative appeal. They are often used for ornamental fences, gates, and architectural features.

Metal frames are available in various shapes and sizes, allowing for customization to suit specific project requirements. They are versatile and commonly utilized in garden fencing, shelves, enclosures, and much more.

Consider your project’s specific needs when choosing the type of wire mesh and metal frame to ensure a successful and durable wire mesh installation.

Materials and Tools Needed for Attaching Wire Mesh

When it comes to attaching wire mesh, you’ll need a few essential materials and tools to ensure a secure and successful installation. Here’s a breakdown of what you’ll need:

Materials Required:

• Wire mesh roll or sheet: The wire mesh size and gauge will depend on your project’s specific requirements, such as the desired strength and level of visibility.
• Fasteners: Choose the appropriate type of fasteners based on the method you’ll be using to secure the wire mesh. This can include screws, bolts, nails, or wire ties.

Tools Required:

• Wire cutters or snips: These tools are necessary for cutting the wire mesh to the desired size or shape.
• Drill with appropriate bits: If you’re using screws or bolts to fasten the wire mesh, a drill with the appropriate bits will be required to make holes in the metal frame or other surfaces.
• Pliers: Pliers can be useful for twisting or bending wires, particularly when using wire ties as fasteners.
• Measuring tape, scissors, or metal snips: These tools will help you measure and shape the wire mesh to fit your specific installation needs.

By ensuring you have the right materials and tools on hand, you’ll be well-prepared to attach wire mesh securely, whether it’s for fencing, enclosures, or other applications. Always follow proper safety precautions and manufacturer guidelines during installation for the best results.

Preparing the Metal Frame and Wire Mesh

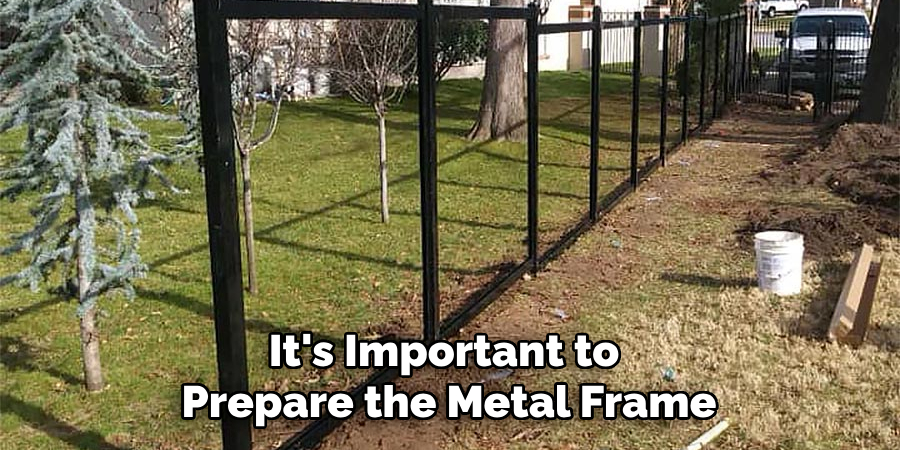

Preparing the Metal Frame

Before attaching the wire mesh, it’s important to prepare the metal frame to ensure a secure and proper attachment. Here are some essential steps to follow:

1. Cleaning and Smoothing the Metal Frame: Start by cleaning the metal frame to remove any rust, dirt, or debris that may hinder the attachment process. Use a wire brush or sandpaper to gently scrub away any corrosion or surface imperfections. This will provide a clean and smooth surface to which the wire mesh can adhere.
2. Ensuring Proper Alignment and Squareness: Check that the metal frame is properly aligned and squared to ensure the wire mesh fits correctly. Use a measuring tape or square tool to verify the frame’s dimensions and make any necessary adjustments. A properly aligned frame will help ensure a seamless and professional-looking installation.

Preparing the Wire Mesh

Once the metal frame is ready, it’s time to prepare the wire mesh for attachment. Follow these steps to ensure a precise fit and safe handling:

1. Cutting the Wire Mesh: Use wire cutters or snips to cut the wire mesh to the desired size and shape that matches the dimensions of the metal frame. Take accurate measurements and use a straight edge or measuring tape to guide your cuts. Avoid leaving any gaps or overlapping sections.
2. Ensuring Clean Edges: After cutting the wire mesh, inspect the edges to ensure they are clean and free from sharp burrs or protruding wire strands. Use pliers or a file to carefully smooth out any rough or sharp areas. This step is crucial to prevent injury or damage during installation or future use.

By following these steps and properly preparing the metal frame and wire mesh, you’ll create a solid foundation for securely attaching the wire mesh. This meticulous preparation ensures a professional-looking installation while maintaining safety and structural integrity.

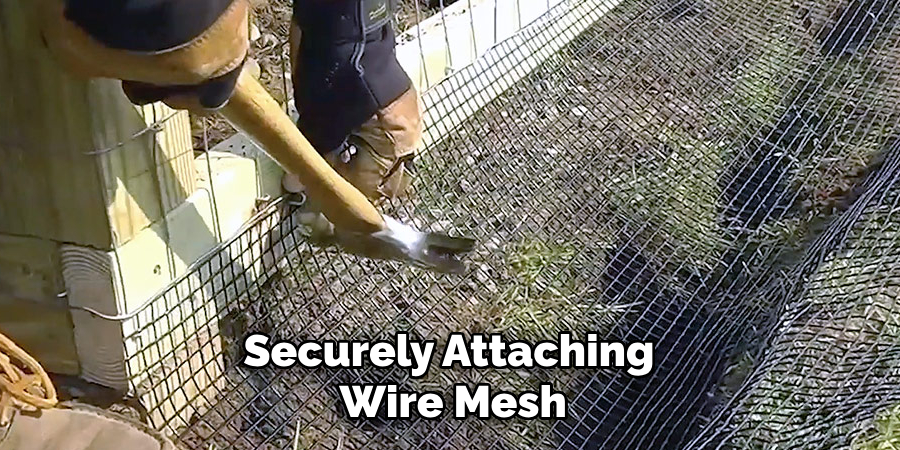

How to Attach Wire Mesh to Metal Frame: Methods to Follow

Several effective methods are for securely attaching wire mesh to a metal frame. The choice of method depends on the specific project and the desired level of strength and durability. Here are three commonly used methods:

Using Screws and Washers

One method for attaching wire mesh to a metal frame is by using screws and washers. This method provides a strong and secure attachment with minimal risk of movement. Here’s how to do it:

1. Drilling Holes: Begin by drilling holes in the metal frame at regular intervals. The size and number of holes depend on the size and weight of the wire mesh.
2. Securing the Mesh: Place the wire mesh over the frame, ensuring it is pulled taut across the entire surface. Align the holes in the mesh with the drilled holes in the frame.
3. Attaching with Screws and Washers: Insert screws through the mesh and into the drilled holes. Place washers over the screws on the opposite side of the frame. Tighten the screws using a screwdriver or power drill until the mesh is securely attached.

Using screws and washers provides a durable and reliable attachment method, especially for larger or heavier wire mesh applications.

Using Wire Ties

Another method for attaching wire mesh to a metal frame is by using wire ties. This cost-effective method is easy to apply, making it ideal for small-scale or temporary projects. Here’s how to use wire ties:

1. Wrapping Wire Ties: Position the wire mesh over the metal frame correctly. Wrap wire ties around the wire mesh and the frame at regular intervals, leaving enough excess to twist and secure the ties.
2. Twisting the Wire Ties: Use pliers to twist the wire ties tightly and evenly, ensuring the mesh is held firmly in place. Be careful not to over-tighten and damage the mesh.

Using wire ties offers a flexible and adjustable attachment method, suitable for projects that may require future modifications or removal.

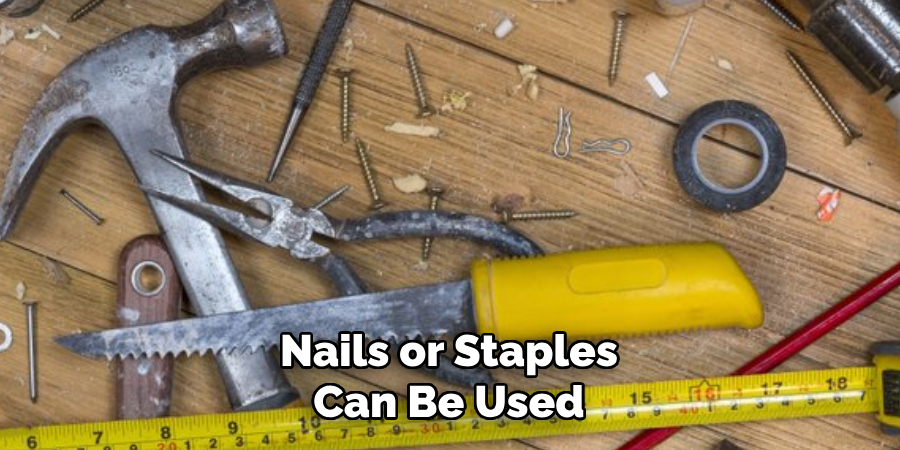

Using Nails or Staples

For wood-framed projects or thin metal frames, nails or staples can be used to attach the wire mesh securely. Here’s how to use nails or staples:

1. Positioning the Mesh: Place the wire mesh over the wooden or metal frame, ensuring it is aligned correctly and taut.
2. Spacing the Fasteners: Space nails or staples evenly along the edges of the mesh, approximately every 6 to 8 inches. This helps prevent the mesh from sagging or shifting.
3. Attaching the Mesh: Using a hammer or staple gun, drive the nails or staples through the mesh and into the frame. Be careful not to damage the mesh or overdrive the fasteners.

Using nails or staples provides a quick and efficient attachment method that is suitable for lighter wire mesh or smaller frames.

By selecting the appropriate attachment method and following these techniques, you can securely attach wire mesh to a metal frame, ensuring stability and durability for your project.

Securing the Mesh and Ensuring Tautness

After attaching the wire mesh to the frame, securing it properly and ensuring it is taut for optimal performance and appearance is essential. Here are key techniques to achieve this:

• Ensuring the Mesh is Tight: Using pliers or a tensioning tool to pull the mesh tightly across the frame to avoid sagging or wrinkles. This will create a smooth and even surface, enhancing the overall stability and aesthetics of the project.
• Securing the Mesh at Multiple Points: It’s important to maintain even tension throughout the mesh. Secure the mesh at multiple points along the frame, spacing the fasteners evenly. This helps distribute the tension and prevents the mesh from becoming loose or uneven.

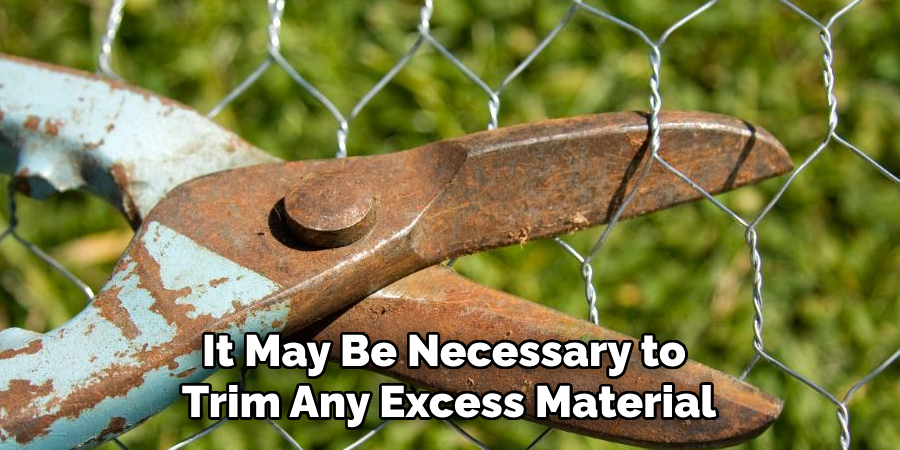

Trimming Excess Mesh

Once the wire mesh is securely attached and taut, it may be necessary to trim any excess material. Carefully cut off the excess wire mesh using wire cutters or snips, ensuring a clean and neat finish. Be mindful not to leave any sharp edges that could pose a safety risk.

Tips for Trimming Mesh: When trimming the mesh, keep the following tips in mind:

• Cut the mesh close to the fasteners to minimize any protruding or sharp edges.
• Take care not to damage the mesh or the frame while trimming.
• Dispose of the trimmed wire mesh safely to avoid injuries.

By following these techniques and trimming the mesh properly, you’ll achieve a securely attached wire mesh with a professional and polished appearance.

Troubleshooting Common Issues When Attaching Wire Mesh

When installing wire mesh, it’s essential to be aware of potential issues that may arise during the process. Here are some common problems and solutions to troubleshoot them:

Wire Mesh Shifting or Loosening:

To prevent the mesh from shifting after installation, ensure the attachment is even, and there is proper tension. Here are some solutions if the mesh becomes loose:

• Add more fasteners along the frame, spacing them evenly to distribute tension and secure the mesh in place.
• Adjust the tension by tightening existing fasteners or adding additional ones to restore the desired tautness.

Metal Frame Distortion:

During the installation process, it’s important to address any bending or warping of the metal frame to ensure a secure attachment. Here’s how to straighten a distorted frame:

• Identify areas of distortion and gently manipulate the frame back into its original shape using tools like pliers or clamps.
• Ensure that the frame remains rigid during installation to provide a stable foundation for attaching the wire mesh.

By troubleshooting these common issues and taking preventive measures, you can ensure a secure and functional attachment of the wire mesh to the metal frame, resulting in a professional and reliable outcome.

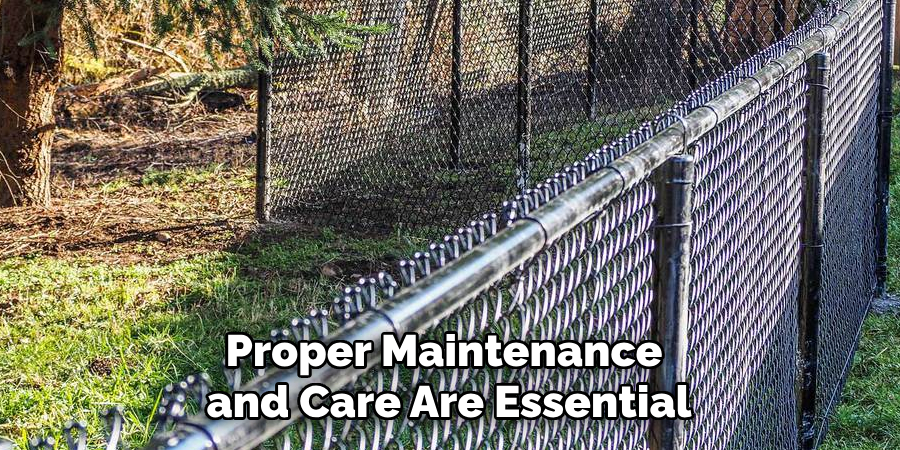

Maintaining and Caring for the Attached Wire Mesh

Proper maintenance and care are essential to ensure the longevity and functionality of the attached wire mesh. Regular cleaning and inspection help prevent rust, dirt buildup, and corrosion while taking preventive measures against these issues is crucial. Here are some tips to maintain and care for the attached wire mesh:

Cleaning and Inspection: Regularly clean the wire mesh using a soft brush or cloth and mild soap to remove dirt and debris. Rinse thoroughly with water and allow it to dry completely. Periodically inspect the attachment points to ensure the mesh remains secure and tighten any loose fasteners if needed.

Preventing Corrosion: Apply a protective coating or paint to the metal frame and mesh to protect them from moisture and rust. Choose the right type of paint or coating suitable for outdoor or high-humidity areas to maximize durability and corrosion resistance.

By following these maintenance practices, you can ensure the attached wire mesh stays in optimal condition, providing long-lasting security and functionality for your project.

Conclusion

In conclusion, knowing how to attach wire mesh to metal frame is essential for various DIY and construction projects. By following the methods and steps outlined in this guide, you can ensure a secure and long-lasting installation. The importance of choosing the right tools, materials, and methods cannot be overstated, as they directly impact the durability and functionality of the wire mesh.

A properly secured installation prevents rust, dirt buildup, and corrosion, ensuring optimal performance over time. Wire mesh offers versatility and can be used in various applications, providing security and stability. So, whether you’re working on a fencing project, creating a garden trellis, or constructing a protective barrier, ensure a successful outcome by attaching wire mesh to a metal frame using the right techniques and materials.
