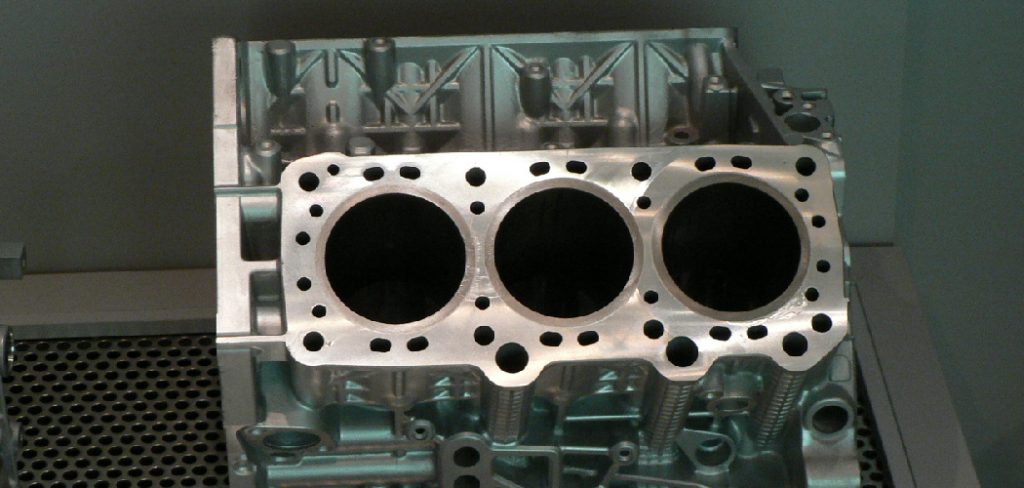

When working on an engine block, encountering a stripped bolt hole can be a frustrating and challenging problem. Stripped threads not only hinder the functionality of the engine but can also lead to costly repairs if not addressed properly. Fortunately, there are effective methods to fix a stripped bolt hole and restore the integrity of the engine block without requiring extensive replacements. This guide will walk you through the steps and tools needed for how to fix a stripped bolt hole in engine block, ensuring a secure and reliable fit for your bolts.

Tools and Materials Needed

Fixing a stripped bolt hole in an engine block requires the right tools and materials to ensure an effective and durable repair. Here are the essential items you’ll need:

• Thread Repair Kit: This typically includes a drill bit, tap, and thread inserts (e.g., Helicoil or similar brands) designed to restore damaged threads.
• Drill: A quality drill with variable speed settings to ensure precision when preparing the bolt hole.
• Tap Wrench: Used to hold and operate the tap for creating new threads in the damaged hole.
• Thread Insert Installer: A tool included in thread repair kits to securely install the thread insert into the repaired bolt hole.
• Cutting Oil: Reduces friction and helps maintain the integrity of the tap and drill bit while threading.
• Measuring Tools: Calipers or a thread gauge to determine the correct size of the bolt and thread insert.
• Compressed Air or Cleaning Brush: To clear debris and metal shavings from the bolt hole after drilling and tapping.
• Safety Gear: Safety goggles and gloves to protect from flying debris and sharp edges during the repair process.

Having these tools and materials readily available will ensure a smooth and efficient repair, allowing for a secure and lasting fix for the stripped bolt hole.

10 Methods How to Fix a Stripped Bolt Hole in Engine Block

1. Helicoil Kit Installation

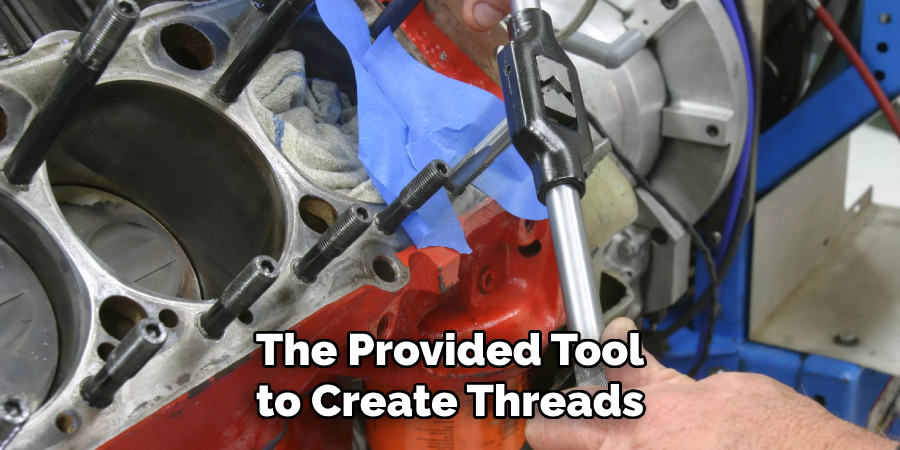

One of the most commonly used and effective methods for fixing a stripped bolt hole is by installing a Helicoil insert. Helicoils are coiled wire inserts designed to create new threads in a damaged bolt hole, restoring its ability to hold a bolt securely. To use a Helicoil, first drill the stripped hole to the appropriate size according to the kit’s specifications. Then, tap the hole with the provided tool to create threads that match the Helicoil insert.

Once the hole is ready, use the installation tool to screw the Helicoil into the hole, forming new, strong threads. Helicoils are a great option for moderate damage and are suitable for engine blocks made from materials like aluminum or cast iron. This method is relatively simple and can be done by DIY mechanics with some basic tools.

2. Timesert Insert

A Timesert insert is another highly effective solution for fixing a stripped bolt hole, particularly in high-stress applications such as engine blocks. Timeserts are solid steel inserts that provide a stronger and more durable thread repair compared to Helicoils. The process of installing a Timesert is similar to using a Helicoil, but it offers a more permanent fix. First, you’ll need to drill the damaged hole to the specified size and then tap it to create threads that match the Timesert insert. After tapping the hole, insert the Timesert into place, using a tool to ensure it is securely installed.

3. Thread Repair Kit

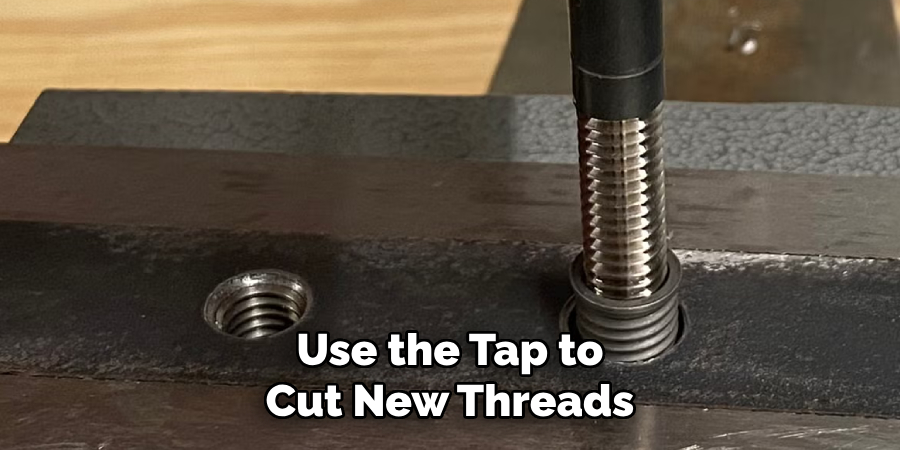

A thread repair kit is a versatile and widely used method for fixing stripped bolt holes. These kits typically contain a set of taps, inserts, and sometimes helicoid-like tools, making them suitable for a range of thread sizes and applications. To repair the stripped hole, you will first need to drill it out to the proper diameter as recommended by the kit. Once the hole is drilled, use the tap to cut new threads into the hole.

Afterward, insert a threaded insert into the hole, creating new threads that allow the original or a slightly larger bolt to fit. Thread repair kits are available in many sizes and configurations, making them useful for different types of engine blocks and bolt sizes.

4. Welding and Redrilling

If the damage to the bolt hole is too extensive for standard inserts or thread repair methods, welding and redrilling can offer a more permanent solution. This method involves welding the stripped bolt hole shut, essentially creating a solid block of material. After the weld has cooled and hardened, you can redrill the hole to the correct size and tap it to create fresh threads. Welding provides a clean slate for creating a new hole, and the redrilling process allows you to restore the hole’s functionality.

This method is especially useful when the hole has been stripped beyond the point where inserts or thread kits can be used effectively. It’s a more time-consuming and advanced repair method that may require professional skills, but it can be highly effective for heavily damaged engine blocks.

5. Redrill and Use a Larger Bolt

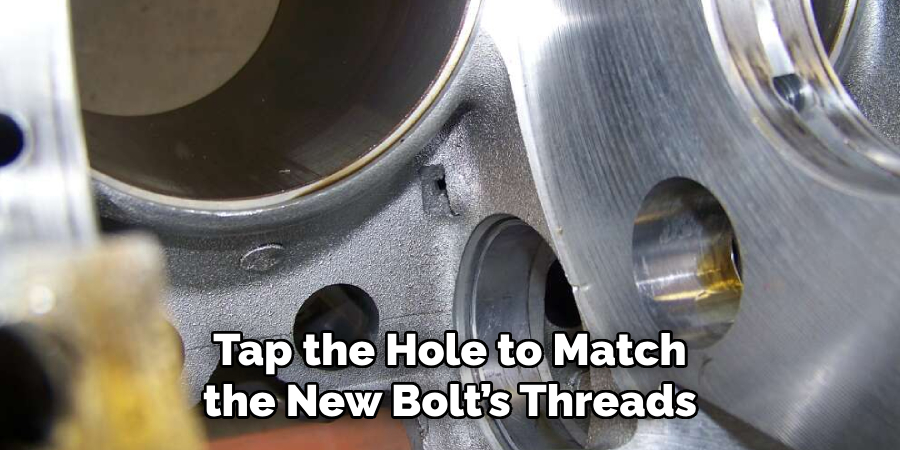

Another option when dealing with a severely stripped bolt hole is to simply redrill the hole and use a larger bolt. This method works when the stripped hole is too wide or deep to be repaired with standard inserts, and when you have enough material around the hole to accommodate a larger fastener. Begin by drilling the damaged hole to a larger size, following the specific guidelines for the new bolt. Then, tap the hole to match the new bolt’s threads, and install the larger fastener. This method is straightforward and works best when a slightly larger bolt will suffice, and the engine block can accommodate the increased size.

6. JB Weld or Epoxy (Temporary Fix)

For a temporary solution to a stripped bolt hole, high-strength adhesives like JB Weld or epoxy can provide a quick and easy fix. While not a permanent solution, this method can work well in non-critical areas or for short-term repairs. Start by cleaning the stripped area thoroughly to remove any dirt or oil, as this will help the adhesive bond more effectively. After mixing the epoxy or JB Weld according to the manufacturer’s instructions, apply it generously to the stripped hole. Insert the bolt while the adhesive is still soft, then allow it to cure fully.

The bond created by the epoxy will hold the bolt in place temporarily, but it is not suitable for high-stress applications or areas where the engine requires precise torque settings. This method is ideal for getting the engine up and running again quickly when a more permanent fix is not immediately possible.

7. Tapered Plug Insert

In cases of minor stripping, a tapered plug can be used to temporarily fill the stripped bolt hole and provide a secure fit for the bolt. Tapered plugs are inserted into the hole and expand as they are driven in, creating a tight seal. This method is particularly useful for minor stripping or for instances when you don’t have access to a Helicoil or Timesert kit. While tapered plugs can offer a temporary solution, they are not recommended for critical applications where long-term reliability is required.

8. Thread Chasing

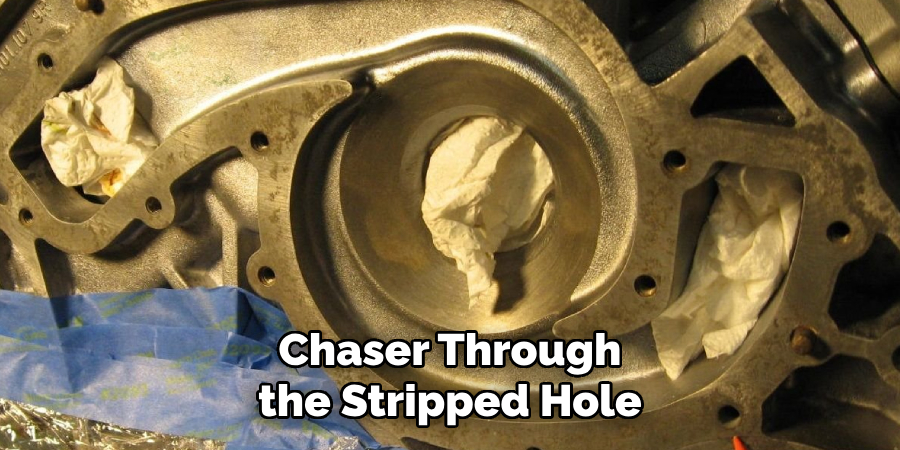

Thread chasing is a method used to clean up damaged threads without removing too much material. This is ideal for cases where the bolt hole is only slightly stripped and the threads remain mostly intact. A thread chaser tool is similar to a tap, but it is designed to smooth out and re-form existing threads without cutting new ones. By carefully running the thread chaser through the stripped hole, you can remove debris, straighten the threads, and restore the hole’s functionality.

9. Use of Back-Out Tool

When a stripped bolt hole is accompanied by a broken or seized bolt, a back-out tool can be very effective. Back-out tools are designed to grip and remove stubborn or damaged bolts, while also repairing the surrounding threads. These tools often feature a spiral design that grips the damaged bolt and, as you turn the tool, it removes both the bolt and any damaged threads. Once the bolt and damaged threads are removed, you can then tap the hole and install a new bolt. This method is ideal for cases where the bolt is stuck or broken, as it eliminates the need for drilling out the broken bolt first.

10. Re-Tapping and Thread Rebuilding

In some cases, the simplest solution is to re-tap the stripped bolt hole to rebuild the threads. This is especially effective when the damage is minimal, and you simply need to restore the original threads. To re-tap the hole, you will need to drill it out slightly to remove any damaged threads. Then, use the appropriate tap to cut new threads, restoring the ability of the hole to securely hold a bolt. This method is ideal for minor stripping and when you have the proper tap to match the original thread size.

Conclusion

Repairing a stripped bolt hole in an engine block requires careful evaluation of the damage and the selection of an appropriate method. Whether opting for quick fixes like JB Weld or thread chasing, or more permanent solutions such as Helicoil inserts, welding, or re-tapping, each method has its advantages depending on the severity of the damage and specific requirements. So, there you have it – a quick and easy guide on how to fix a stripped bolt hole in engine block.
