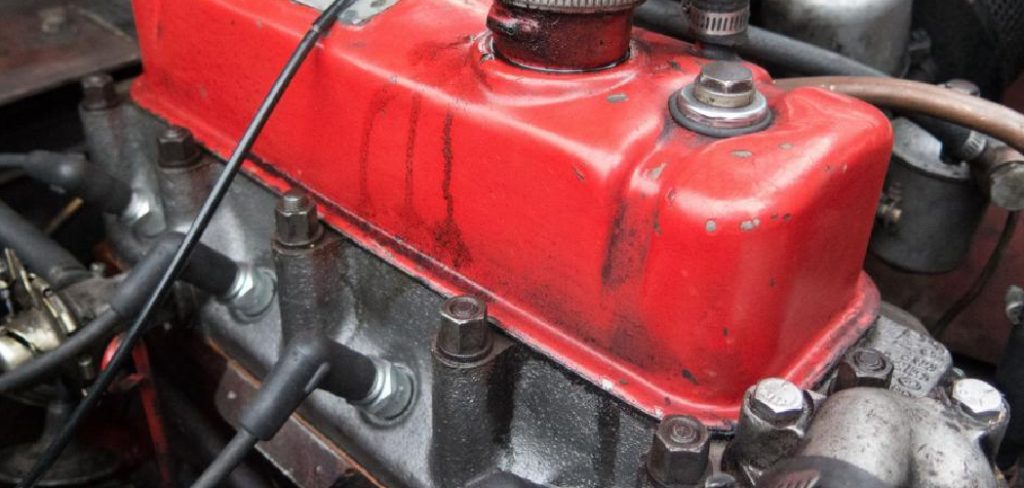

Broken bolts in an engine block are a common yet frustrating problem faced by many vehicle owners and mechanics. These bolts can break for various reasons, including corrosion, overtightening, or long-term wear caused by repeated heat cycles and stress. When a bolt breaks inside the engine block, it can disrupt vital engine operations and create additional challenges, especially if not addressed promptly and correctly.

Proper removal of a broken bolt is essential to avoid causing further damage to the engine block. Improper techniques can strip the threads, crack the surrounding material, or leave parts of the bolt stuck, complicating repairs. Therefore, understanding how to remove a broken bolt from an engine block is critical for effective and safe repair. This article aims to provide step-by-step guidance on the best methods and tools to help you remove broken bolts efficiently while preserving the integrity of your engine.

Assessing the Situation and Tools Needed

Evaluating the Bolt’s Condition and Accessibility

Before attempting to remove a broken bolt from an engine block, it is important to evaluate the situation to determine the best course of action. Begin by checking if any part of the bolt protrudes above the surface, as this will influence the removal method. A protruding bolt can often be gripped and turned, while a bolt broken flush or below the surface may require drilling or advanced techniques.

Next, assess the degree of corrosion or breakage. Corroded bolts may be stuck due to rust buildup, making them harder to remove. Inspect for visible rust or damage surrounding the bolt, and consider testing its grip strength by lightly attempting to rotate it. Proper evaluation helps avoid causing further damage and ensures you use the most effective tools and methods.

Gathering the Necessary Tools

The right tools are essential for successfully removing a broken bolt. Basic tools you’ll need include penetrating oil to loosen rusted bolts, vise grips for clamping, a drill with appropriate drill bits, a bolt extractor set for stuck bolts, and left-hand drill bits to assist in unscrewing. A heat source, such as a heat gun or propane torch, can help by expanding the metal around the bolt.

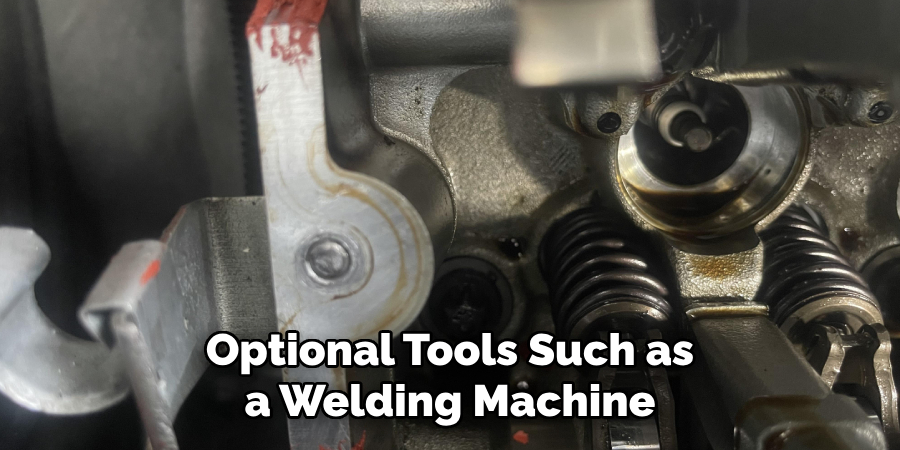

Optional tools such as a welding machine to attach a nut, easy-outs for precise removal, or a tap-and-die set for rethreading may also be required for particularly stubborn bolts. Having these tools ready will make the process smoother and increase the likelihood of a successful removal.

Preparing for Bolt Removal

Ensuring Safety Precautions

Safety is paramount when removing a broken bolt from an engine block. Wear protective gear, including gloves to shield your hands from sharp edges and hot surfaces, goggles to protect your eyes from flying debris, and sturdy clothing to guard against burns or cuts. Always disconnect the car battery before starting to avoid any electrical hazards, as working near the engine block may involve electrical components. Ensure your workspace is well-lit and ventilated, especially if using heat tools or chemical penetrating oil. Following these precautions minimizes risks and creates a safer environment for bolt removal.

Cleaning the Area Around the Bolt

Proper preparation includes thoroughly cleaning the area around the broken bolt. Use a wire brush or compressed air to clear away loose debris, oil, or rust that may obstruct access to the bolt. Cleaning improves visibility and ensures tools can grip the bolt securely. After cleaning, apply penetrating oil around the base of the bolt. This oil helps to loosen corrosion and makes the bolt easier to remove. Allow the oil sufficient time to seep into the threads—typically 10-15 minutes or as directed by the product—before proceeding with the extraction process.

How to Remove a Broken Bolt from An Engine Block: Methods for Removing a Broken Bolt

Using Vise Grips for Protruding Bolts

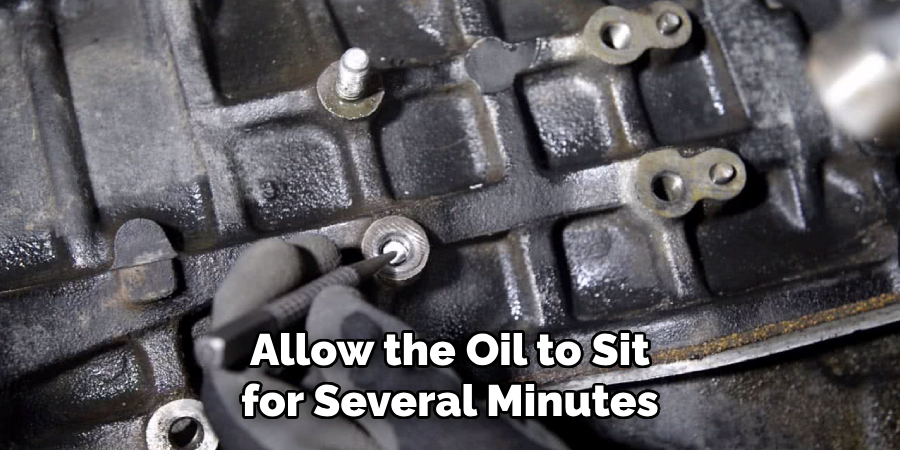

When a broken bolt protrudes above the surface, vise grips can be an effective removal tool. Start by securely clamping the vise grips’ jaws onto the bolt’s exposed section. Ensure the grips are tight enough to prevent slipping, but avoid overtightening, as this could damage the bolt further. Clean the exposed area with a wire brush and apply penetrating oil to help loosen the threads if surface rust is present. Allow the oil to sit for several minutes for optimal effect.

Once the vise grips are secured, turn the bolt counterclockwise slowly and steadily. Avoid applying excessive force, as this could break the bolt further. Small, controlled movements are key to gradually loosening the stuck bolt. If resistance increases, pause and reapply the rating oil or adjust the grip. Taking your time during this process reduces the risk of additional damage and increases the likelihood of successful removal.

Drilling and Using a Bolt Extractor

For bolts broken flush with or below the surface, drilling and using a bolt extractor provides a precise solution. Begin by selecting a drill bit slightly smaller than the diameter of the bolt. Center the drill bit on the broken bolt and drill a pilot hole approximately ¼ to ½ inch deep, ensuring the hole remains straight and centered. This step is crucial for the extractor to function properly.

Next, insert the bolt extractor into the pilot hole. Choose an extractor that matches the size of your pilot hole, then gently tap it into place using a hammer to ensure a snug fit. Attach a T-handle or adjustable wrench to the extractor and slowly turn it counterclockwise. The extractor’s reverse threads will grip the inside of the bolt, allowing you to unscrew it gradually. Avoid breaking the extractor by applying steady, controlled pressure during removal.

Applying Heat to Loosen Stuck Bolts

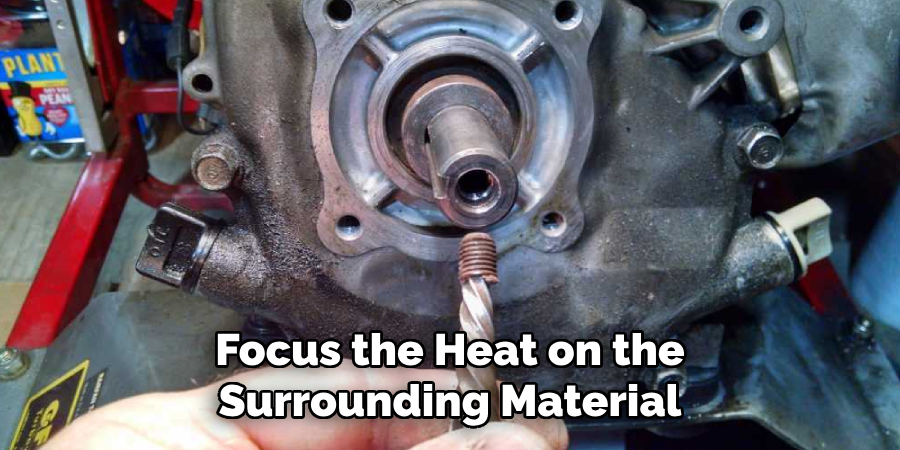

Applying heat can help when dealing with bolts stuck due to corrosion or thermal expansion. Use a heat gun or a propane torch to carefully heat the area surrounding the bolt. The heat causes the metal around the bolt to expand, which can loosen the threads’ grip. Focus the heat on the surrounding material rather than directly on the bolt, and avoid heating any sensitive components nearby.

After heating for one to two minutes, allow the area to cool slightly and try turning the bolt counterclockwise using vise grips or a bolt extractor. Be cautious not to overheat, as excessive heat can warp or damage the engine block. Always keep a fire extinguisher nearby when working with open flames. Combining heat with penetrating oil can enhance effectiveness, as the expansion and contraction can allow the oil to penetrate deeper into the threads.

Advanced Techniques for Stubborn Bolts

Welding a Nut Onto the Broken Bolt

Welding a nut onto the exposed portion of the broken bolt can provide a viable removal method for particularly stubborn bolts. Start by selecting a nut slightly larger than the diameter of the broken bolt and position it over the exposed tip. Using a welding machine, weld the center of the nut securely to the broken bolt. Ensure the weld fully bonds the nut to the bolt for maximum strength.

Once the welding is complete, allow the area to cool slightly but not fully, as some residual heat can aid in loosening the bolt. After cooling for a minute or two, use a wrench or socket to grip the newly welded nut. Begin turning the nut counterclockwise with steady, controlled movements, ensuring not to apply excessive force to avoid breaking the weld. This method works well because the heat from welding can help loosen corrosion, and the nut provides a new grip to turn the bolt out of its threads effectively. Always take appropriate safety precautions during this process, such as wearing protective welding gear and working in a well-ventilated environment.

Using Left-Hand Drill Bits

Left-hand drill bits can be powerful tools for removing broken bolts while reducing the risk of damaging threads. These specialized bits are designed to rotate counterclockwise—the opposite direction of standard drill bits—allowing them to extract bolts as they drill.

To use this method, begin by selecting a left-hand drill bit slightly smaller than the bolt’s diameter. Position the drill bit at the center of the broken bolt and slowly drill a pilot hole. Be sure to maintain a straight, stable angle to avoid damaging the surrounding threads. As the bit drills into the bolt, the counterclockwise motion may begin to unscrew and loosen the bolt.

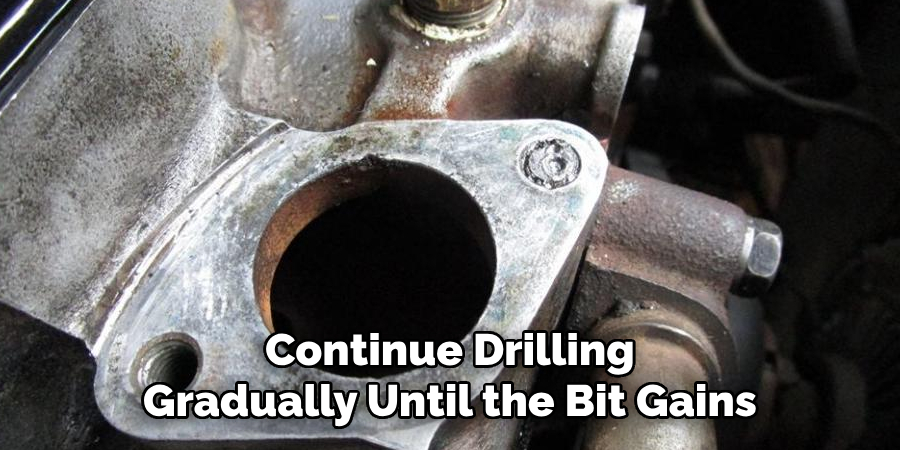

If the bolt does not loosen immediately, continue drilling gradually until the bit gains sufficient grip to turn the bolt out. Using a slow drilling speed and steady pressure is essential to avoid breaking the drill bit. This method is especially effective for bolts that are not excessively corroded or fused to the material, combining precision with minimal risk to the surrounding area.

Repairing Threads After Bolt Removal

Checking the Condition of the Threads

Once the bolt has been successfully removed, it is essential to inspect the bolt-hole threads for damage. Start by visually examining the threads for signs of wear, such as deformation, flattening, or misalignment. Run a clean bolt of the same size and thread pitch into the hole by hand to check for smooth engagement. If you encounter resistance or the bolt feels loose, this may indicate damaged threads. Look for metal debris or uneven surfaces that may require repair. Determining the condition of the threads promptly can help prevent issues with future assembly and ensure the integrity of the connection.

Repairing Threads with a Tap-and-Die Set

To restore damaged threads, use a tap-and-die set to clean or re-thread the bolt hole. First, select a tap that matches the original thread size and pitch. Gently insert the tap into the bolt hole, ensuring it’s aligned correctly, and turn it slowly clockwise to cut new threads or realign existing ones. Apply cutting oil to reduce friction and prevent damage during this process. If the threads are too damaged for re-tapping, using a helicoil insert is a reliable alternative. Drill out the damaged threads, tap a larger hole, and insert the helicoil to restore the original thread size and pitch. Ensuring a precise repair helps maintain the strength and functionality of the threaded connection.

Preventing Future Bolt Breakage

Tips for Proper Bolt Installation

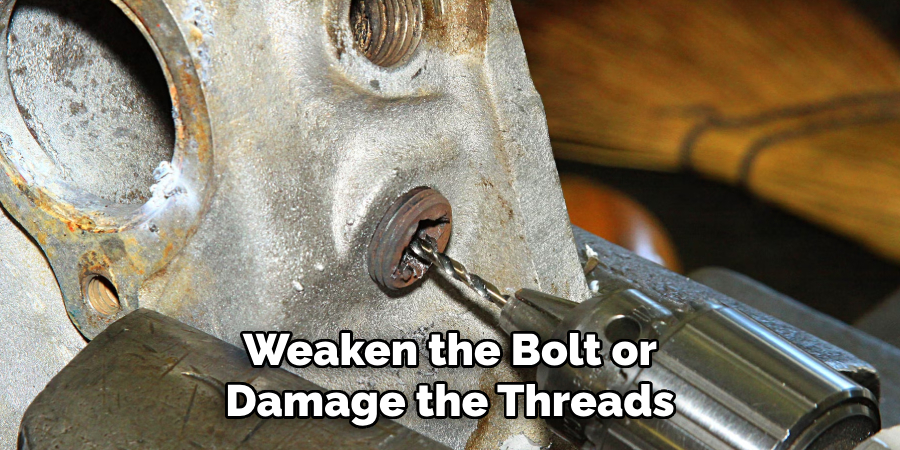

Using anti-seize lubricant during bolt installation prevents rust, galling, and over-tightening. This lubricant creates a protective barrier, allowing easier removal in the future and extending the lifespan of the bolts. Additionally, it is important to tighten bolts to the correct torque specifications recommended by the manufacturer. Over-tightening can weaken the bolt or damage the threads, while under-tightening may compromise the connection’s integrity. Following these guidelines ensures safe and secure installations.

Regular Maintenance and Inspections

Regular inspections of bolts and engine components are essential for identifying wear, corrosion, or other issues early. Check bolts for signs of rust, fatigue, or deformation, and clean or lubricate them as needed. Proactively replace worn or corroded bolts to prevent potential breakage or failure during operation. Routine maintenance enhances safety and prevents costly repairs or downtime caused by neglected components.

Conclusion

Removing a broken bolt from an engine block requires effective techniques and a systematic approach. Throughout this guide, we’ve explored various methods, including penetrating oils, heat application, welding, left-hand drill bits, and re-threading damaged holes. Each method has its advantages, but safety and patience remain critical to prevent further complications or damage. Understanding “how to remove a broken bolt from an engine block” is as much about preparation and precision as execution. Lastly, taking preventive measures, such as proper bolt installation and regular maintenance, can help minimize the likelihood of encountering this issue.
