Repairing damaged aluminum threads can be a critical task in maintaining the functionality and longevity of various components. Aluminum, being a lightweight and durable material, is widely used in automotive, industrial, and household applications. This guide explores the key aspects of how to repair aluminum threads. However, its relatively soft nature makes it susceptible to thread damage over time or under excessive stress. Whether you’re dealing with stripped threads or minor wear, understanding the right methods and tools to restore them can save time, money, and effort while ensuring a reliable repair.

Why Aluminum Threads Get Damaged

Aluminum threads are prone to damage primarily due to the material’s inherent softness. Unlike steel or other harder metals, aluminum has a lower tensile strength, which makes it more susceptible to wear, deformation, and stripping under excessive loads or repeated use.

Over-tightening fasteners is one of the most common causes of damage, as it can easily strip the threads or distort their shape. Additionally, exposure to corrosion, especially in environments with moisture, salt, or chemicals, can weaken aluminum over time, further increasing the risk of thread failure. Thermal expansion is another factor since aluminum expands and contracts more significantly with temperature changes, potentially leading to loosening or damage of the threads. Recognizing these vulnerabilities is crucial in preventing damage and applying proper repair techniques when necessary.

Tools and Materials Needed

To effectively repair aluminum threads, having the right tools and materials is essential. Below is a list of items commonly required for the repair process:

• Thread Repair Kits – These kits typically include tools such as thread taps and helicoils for restoring or replacing damaged threads.
• Drill and Drill Bits – For creating a clean and precise hole where damaged threads need to be re-tapped or replaced.
• Thread Inserts (Helicoils or Solid Inserts) – Used to reinforce the threads and provide a durable, reliable solution.
• Thread Tap – A specialized tool for cutting or repairing threads within a hole.
• Lubricating Oil – To reduce friction and make the threading process smoother and more precise.
• Cleaning Tools – Such as wire brushes or compressed air, to remove debris or corrosion from the damaged area.
• Measuring Tools – For identifying the appropriate thread size and ensuring accuracy during repairs.

Having these tools and materials prepared will allow for a more efficient and successful repair process, ensuring the restored threads maintain durability and functionality.

10 Methods How to Repair Aluminum Threads

1. Assess the Extent of Damage

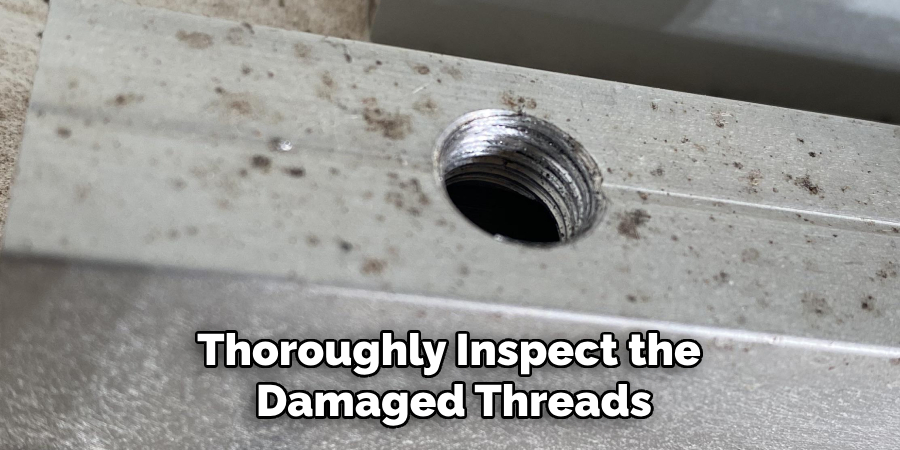

Before starting the repair, thoroughly inspect the damaged threads to determine the severity of the issue. Use a flashlight and a magnifying glass to examine the threads for signs of wear, stripping, or cross-threading. If the damage is minimal, you may be able to fix it with simple tools, such as a thread chaser. For heavily stripped or completely damaged threads, more advanced methods like inserts may be required. Understanding the extent of damage helps you select the most appropriate repair technique.

2. Use a Thread Chaser

For minor thread damage or deformation, a thread chaser is an ideal tool to restore the original profile. A thread chaser is designed to reshape and clean damaged threads without removing additional material. Align the chaser with the existing threads, ensuring it follows the original path, and rotate it gently to re-form the threads. Lubricate the area with cutting oil during the process to minimize friction. This method works well for threads that are slightly worn but still intact.

3. Apply a Helical Thread Insert (Heli-Coil)

A helical thread insert, commonly known as a Heli-Coil, is a reliable solution for repairing completely stripped threads. Start by drilling out the damaged threads with the appropriate-sized drill bit. Next, use a tap to cut new threads that match the insert. Thread the Heli-Coil into the hole using the supplied installation tool, ensuring it sits flush with the surface. The insert provides a durable, stainless steel thread that reinforces the aluminum, making it suitable for repeated use.

4. Use a Solid Thread Insert

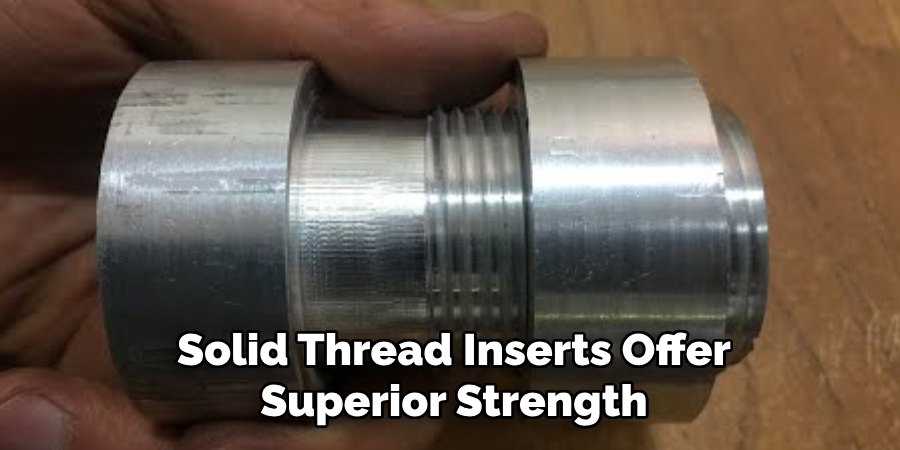

For heavy-duty repairs or critical applications, solid thread inserts offer superior strength compared to helical inserts. These inserts are made from solid metal and often feature a locking mechanism to prevent rotation. To install, drill and tap the hole to the specified size, then thread in the solid insert using a driver. Solid inserts are ideal for applications subject to high torque or frequent assembly and disassembly, as they provide a permanent, robust solution.

5. Repair Threads with Epoxy

Epoxy-based thread repair kits are effective for low-load applications or emergency fixes. Clean the damaged threads thoroughly to remove grease, dirt, and debris. Mix the epoxy according to the manufacturer’s instructions and apply it to the stripped threads. Insert the appropriate bolt or screw into the epoxy-filled hole and allow it to cure fully. Once hardened, the epoxy forms a durable thread-like structure, although it may not withstand heavy stress or frequent use.

6. Tap Oversized Threads

If the original threads are beyond repair and inserts are not feasible, consider tapping the hole to an oversized thread. Use a larger tap to cut new threads into the aluminum, ensuring you select a bolt size that matches the new dimensions. This method removes the damaged material entirely and provides fresh, clean threads. While this approach works well for larger components, it may not be suitable for parts where maintaining the original thread size is critical.

7. Use a Thread File

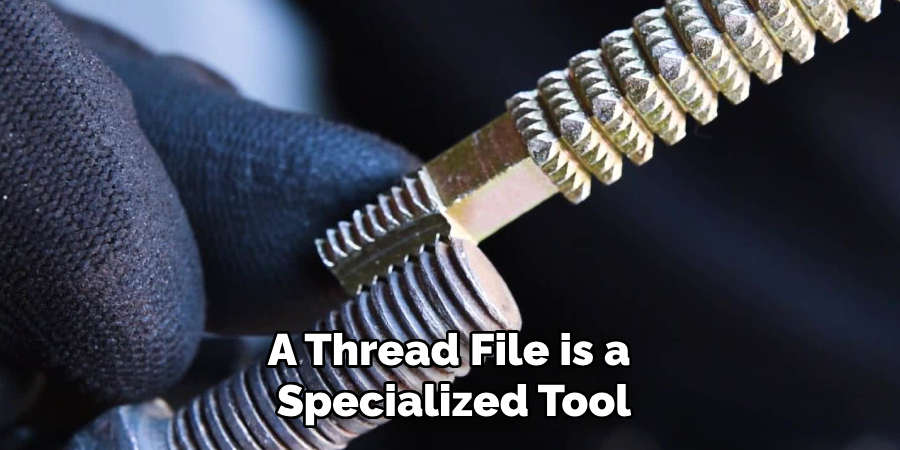

A thread file is a specialized tool with multiple profiles designed to repair damaged external threads. Align the file with the thread pitch and stroke it along the length of the damaged area to reshape the threads. This method is best for external threads on bolts or studs and requires patience and precision. Lubricate the threads during the process to achieve smoother results and reduce the risk of further damage.

8. Install a Keensert

Keenserts are a heavy-duty alternative to Heli-Coils and solid thread inserts. They feature locking keys that secure the insert in place, preventing it from loosening under vibration or torque. Drill and tap the hole to accommodate the Keensert, then thread it into place. Once positioned, drive the locking keys into the aluminum using a hammer and punch. This creates a highly secure repair, suitable for demanding applications like automotive and aerospace components.

9. Recreate Threads with a Die

For external threads that are stripped or worn, a threading die can recreate the original profile. Secure the damaged bolt or stud in a vice and lubricate it with cutting oil. Position the die over the damaged threads and turn it clockwise, applying even pressure. The die cuts and reshapes the threads, restoring their functionality. This method is particularly effective for salvaging valuable bolts or components that would otherwise require replacement.

10. Replace the Component

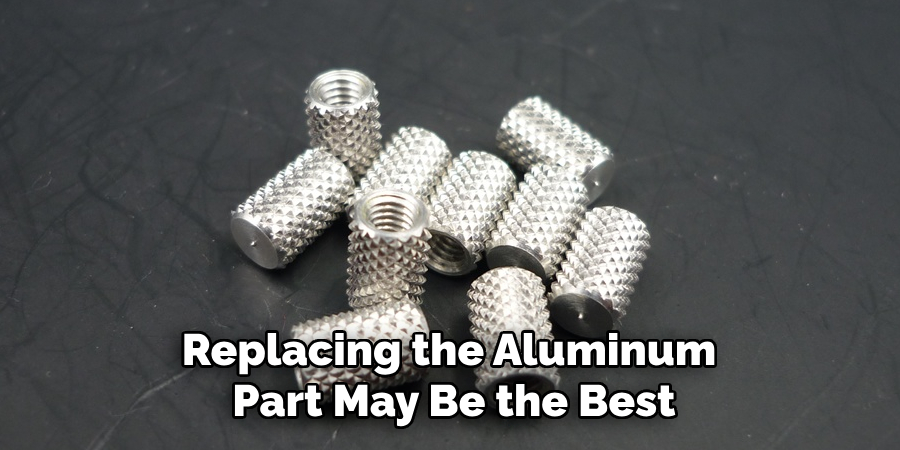

In cases where the threads are too damaged to repair or the repair would compromise the component’s integrity, replacing the aluminum part may be the best option. While this may seem costly, it ensures the component functions as intended without the risk of failure. If replacement is necessary, consult the manufacturer or a professional machinist to source a suitable part. This approach guarantees safety and reliability, particularly for critical applications.

Things to Consider When Repairing Aluminum Threads

When repairing aluminum threads, it is essential to prioritize safety, precision, and durability to ensure a successful outcome. Consider the following factors before beginning the repair process:

1. Thread Size and Type

  Identify the thread’s original size and type, such as metric or imperial, as this will guide the selection of tools and materials needed for the repair. Using mismatched tools can result in further damage, compromising the repair quality.

2. Load Requirements

  Assess the application’s load requirements to determine the best repair method. For high-stress components, opt for heavy-duty solutions like solid inserts or Keenserts to ensure long-term reliability and strength.

3. Material Properties

  Aluminum is a softer metal prone to wear and deformation. Handle it with care during the repair process, avoiding excessive force or torque that could worsen the damage.

4. Tool Compatibility

  Use tools specifically designed for aluminum thread repair, such as thread chasers or properly sized taps and dies. High-quality tools reduce the risk of cross-threading and improve overall precision.

5. Cost and Time

  Evaluate the cost and time required for each repair method. More advanced techniques, such as installing inserts, may involve additional expenses but provide more durable results compared to simpler, temporary fixes.

Conclusion

Repairing damaged aluminum threads requires careful consideration of the application, the extent of the damage, and the appropriate method to restore functionality. Whether using thread inserts, epoxy, or specialized tools like thread files and dies, each technique offers unique benefits depending on the situation. For more critical or heavy-duty applications, investing in robust methods such as solid inserts or Keenserts ensures long-term durability and reliability. So, there you have it – a quick and easy guide on how to repair aluminum threads.
