Stud welding is a versatile and efficient process used to attach metal studs to a surface without drilling holes. This welding method involves heating the stud and the base material to create a strong bond, ensuring durability and reliability. Widely used across various industries, stud welding is commonly applied in automotive dent repair to restore vehicle panels, metal fabrication for creating secure attachments, and construction for reinforcing structures.

Stud welding is an invaluable technique because of its simplicity and effectiveness, particularly for tasks that demand precision and strength. This article aims to serve as a comprehensive guide on how to use a stud welder safely and effectively, providing step-by-step instructions to help beginners and professionals achieve optimal results. By understanding the basics, preparation, and specific techniques, you can master this process and confidently tackle various projects.

Understanding the Basics of a Stud Welder

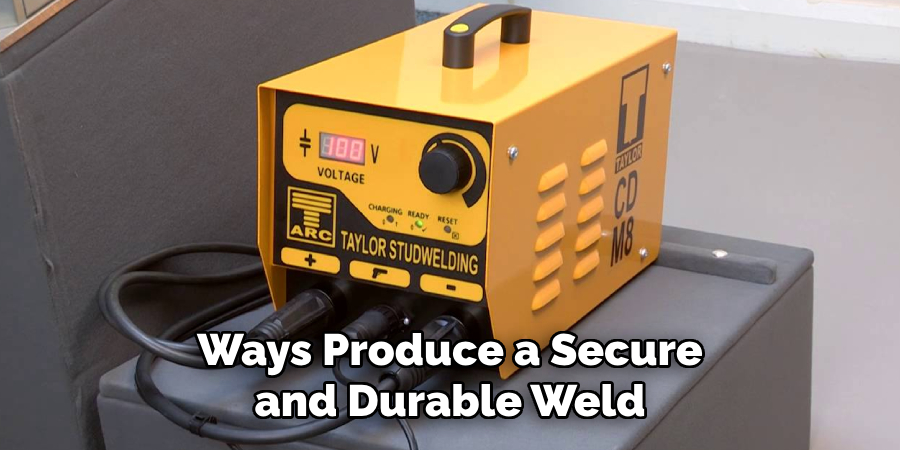

Components of a Stud Welder

A stud welder comprises several key components that attach metal studs securely. The welding gun is the primary tool designed to hold and position the stud during the welding process. The power source supplies the necessary energy to create the weld, typically providing adjustable settings to accommodate different materials and stud sizes. The studs are metal fasteners specifically designed for this process, available in various sizes and shapes depending on the application. Accessories, such as cables, ground clamps, and additional attachments, ensure the system operates smoothly and efficiently. Together, these components create a simple yet effective system for welding studs by directing heat and pressure to form a strong bond.

Types of Stud Welders

There are two primary types of stud welders—capacitor discharge (CD) and drawn arc. Capacitor discharge stud welders are ideal for thin materials, using a quick burst of energy to minimize surface deformation. These are commonly used in applications such as electronics or lightweight metalwork. Drawn arc stud welders, on the other hand, are suited for thicker materials and structural applications, as they rely on a more robust arc to heat the metal. Selecting the right type of stud welder is crucial to achieving the best results, as it ensures compatibility with the material and intended purpose.

Preparing to Use a Stud Welder

Safety Precautions

Safety is paramount when using a stud welder to prevent injuries and ensure effective operation. Always wear appropriate personal protective equipment (PPE), including heat-resistant gloves, safety goggles, and a welding helmet, to shield yourself from heat, sparks, and UV radiation. Long-sleeved clothing and closed-toe shoes can also provide additional protection. Work in a well-ventilated area to prevent the accumulation of fumes and ensure a steady supply of fresh air. Clear the workspace of any flammable materials or liquids to reduce the risk of fires. Following these precautions will ensure a safer and more controlled environment for welding.

Setting Up the Equipment

Proper setup of the stud welder is critical for achieving strong and consistent welds. Begin by connecting the welder to an appropriate power source and securely attaching all cables, clamps, and connectors. Carefully prepare the welding gun by inserting the correct type and size of stud, ensuring it is securely seated. Adjust the power settings based on the material and stud size, referencing the manufacturer’s optimal voltage and current guidelines. A properly set up stud welder ensures efficiency, minimizes errors, and provides a strong foundation for your welding tasks. Always double-check the setup before starting.

How to Use a Stud Welder: Step-by-Step Guide

Cleaning and Preparing the Surface

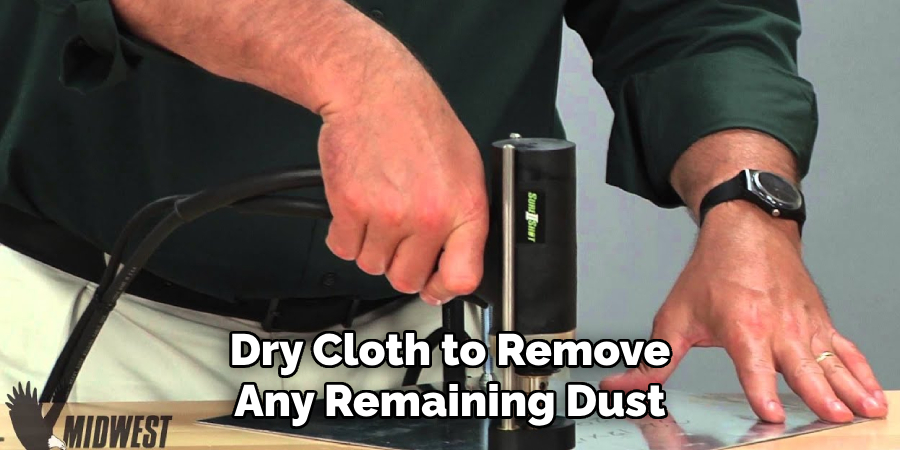

Proper surface preparation is essential for achieving a strong and durable weld. Begin by thoroughly inspecting the area where the stud will be attached and identifying any paint, rust, dirt, or debris that could interfere with the welding process. Use a wire brush or sandpaper to remove these contaminants, ensuring the surface is clean and smooth. A wire brush is effective for scraping away loose rust or flaking paint, while sandpaper can help refine the surface for better adhesion. If necessary, wipe the area with a clean, dry cloth to remove any remaining dust or particles.

Ensuring a clean surface is critical to the welding process. Contaminants can create barriers between the stud and the base material, resulting in weak welds or poor electrical conductivity. Properly preparing the surface will create the optimal conditions needed to form a strong and reliable bond.

Attaching the Stud to the Gun

Loading the stud into the welding gun correctly is a crucial step. Start by selecting the appropriate stud size and type for your project, ensuring it is compatible with the welding gun and the base material. Hold the welding gun firmly and locate the collet or holder that secures the stud. Insert the stud into the holder or collet, ensuring it is fully seated and aligned properly.

Once the stud is loaded, verify that it is securely locked to prevent slippage during welding. The stud’s alignment is critical, as improper positioning could lead to uneven or weak welds. Make adjustments to the collet or holder to ensure a snug fit. Taking the time to carefully attach the stud will improve your accuracy and guarantee that the stud remains steady throughout the weld.

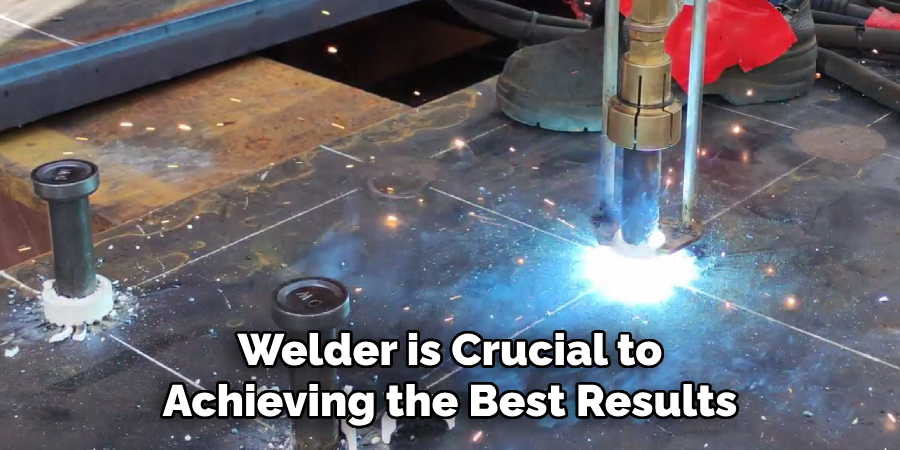

Welding the Stud

Positioning and technique are key when welding the stud. Begin by placing the welding gun so that the stud is perpendicular to the welded surface. This alignment ensures even heat distribution and a consistent weld. Press the gun firmly against the surface to ensure proper contact between the stud tip and the base material.

When ready, trigger the weld by activating the welding gun according to the manufacturer’s instructions. Hold the gun steady throughout the weld to prevent movement and maintain a consistent arc. Most welds are completed within a few seconds, but it is important to maintain the position until the weld is finished. Once the welding arc has stopped, allow the stud to cool briefly before releasing the gun. This ensures a strong, clean attachment. Following these steps, you’ll always produce a secure and durable weld.

Techniques for Specific Applications

Automotive Dent Repair

A stud welder is an invaluable tool in automotive dent repair, allowing for precise and efficient restoration of dented panels. The process begins by identifying the location of the dent and cleaning the surface thoroughly to ensure proper adhesion. Next, small pulling studs are attached to the dented metal using the stud welder. These studs form anchor points that allow the dented surface to be pulled back into its original position without drilling holes or causing further damage.

Once the studs are securely welded, a slide hammer or another pulling tool can be attached to the studs to gently pull the dent outward. It is essential to use gradual, controlled movements to restore the surface while avoiding overstretching or distorting the metal. After correcting the dent, the studs are carefully removed, leaving the surface ready for final finishing, such as sanding and painting. Proper technique ensures a smooth, professional repair.

Structural and Industrial Applications

Stud welding is vital in creating strong and durable connections in structural and industrial applications, such as attaching beams or reinforcements to existing structures. Larger, heavy-duty studs are commonly used in these scenarios due to the need for high load-bearing capabilities. Begin by selecting the appropriate stud size and verifying its compatibility with the welding equipment and materials. Carefully clean and prepare the welding surface to eliminate any contaminants that might compromise the weld quality.

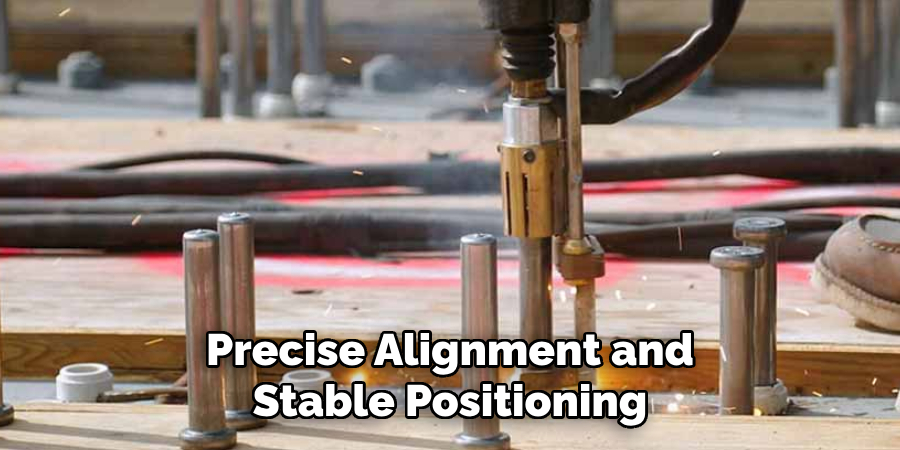

During welding, precise alignment and stable positioning of the stud are crucial to achieving a secure connection. Guided attachments or clamps are recommended to hold both the stud and base material steady while welding. Monitor the power settings carefully, as inadequate voltage or current may result in weak welds. Following these steps ensures a robust attachment capable of withstanding significant stress, making it suitable for demanding structural and industrial environments.

Troubleshooting Common Issues

Weak or Poorly Attached Studs

Weak or poorly attached studs are often the result of insufficient power settings or inadequate surface preparation. Start by verifying that the power settings on the welding machine align with the requirements for the stud size and base material. Insufficient voltage or current can lead to incomplete welds with weak bonds. Additionally, ensure that the surface is clean, free of contaminants, and properly prepared to maximize adhesion. Even minor debris, rust, or paint can act as a barrier, preventing the stud from forming a strong connection.

Another crucial factor is the selection of the correct stud size and material. Using an incompatible or undersized stud can lead to improper welds, compromising the strength of the attachment. Double-check that the stud being used matches the specifications of your project and the welding equipment. By following these steps, you can avoid common issues and improve the reliability of your welds.

Equipment Malfunctions

Equipment malfunctions can disrupt the welding process and impact the quality of your work. Begin troubleshooting by thoroughly inspecting the welding cables, connectors, and the welding gun for signs of wear, damage, or loose connections. Damaged or degraded components can result in poor power transmission and inconsistent welds. Replace any faulty parts as needed.

To avoid performance issues, establish a regular maintenance routine for your equipment. Clean the welding gun, cables, and connectors to remove dust or buildup that could interfere with functionality. Ensure all components are properly stored when not in use to prevent unnecessary wear. Proper maintenance will extend the lifespan of your equipment and help maintain consistent performance.

Maintenance and Care for Your Stud Welder

Cleaning and Storing the Equipment

Proper cleaning and storage of your stud welder are essential to ensure its longevity and consistent performance. After each use, clean the welding gun, power cables, and connectors with a soft brush or cloth to remove dust, debris, and leftover welding residue. Pay special attention to the gun’s tip, ensuring it is free from buildup that could obstruct performance. Once cleaned, store the equipment in a dry, cool place, away from moisture or humidity to prevent rust or damage. Use protective cases or covers to shield it from accidental impacts or environmental exposure.

Regular Inspections and Servicing

Regular inspections help identify potential issues before they disrupt your work. Before each use, check the condition of the power cables, connectors, and the welding gun for any signs of wear or damage. Replace faulty parts immediately to avoid compromising safety or weld quality. Additionally, schedule professional servicing at regular intervals to ensure all components are in optimal working condition and calibrated correctly. This proactive care will extend your stud welder’s operational life and reliability.

Conclusion

Understanding “how to use a stud welder” effectively requires attention to detail, proper preparation, and adherence to safety measures. Key steps include thorough surface cleaning, selecting compatible studs, and carefully managing power settings during the welding process. Employing precise techniques ensures strong and durable attachments, whether for automotive repairs or industrial applications.
